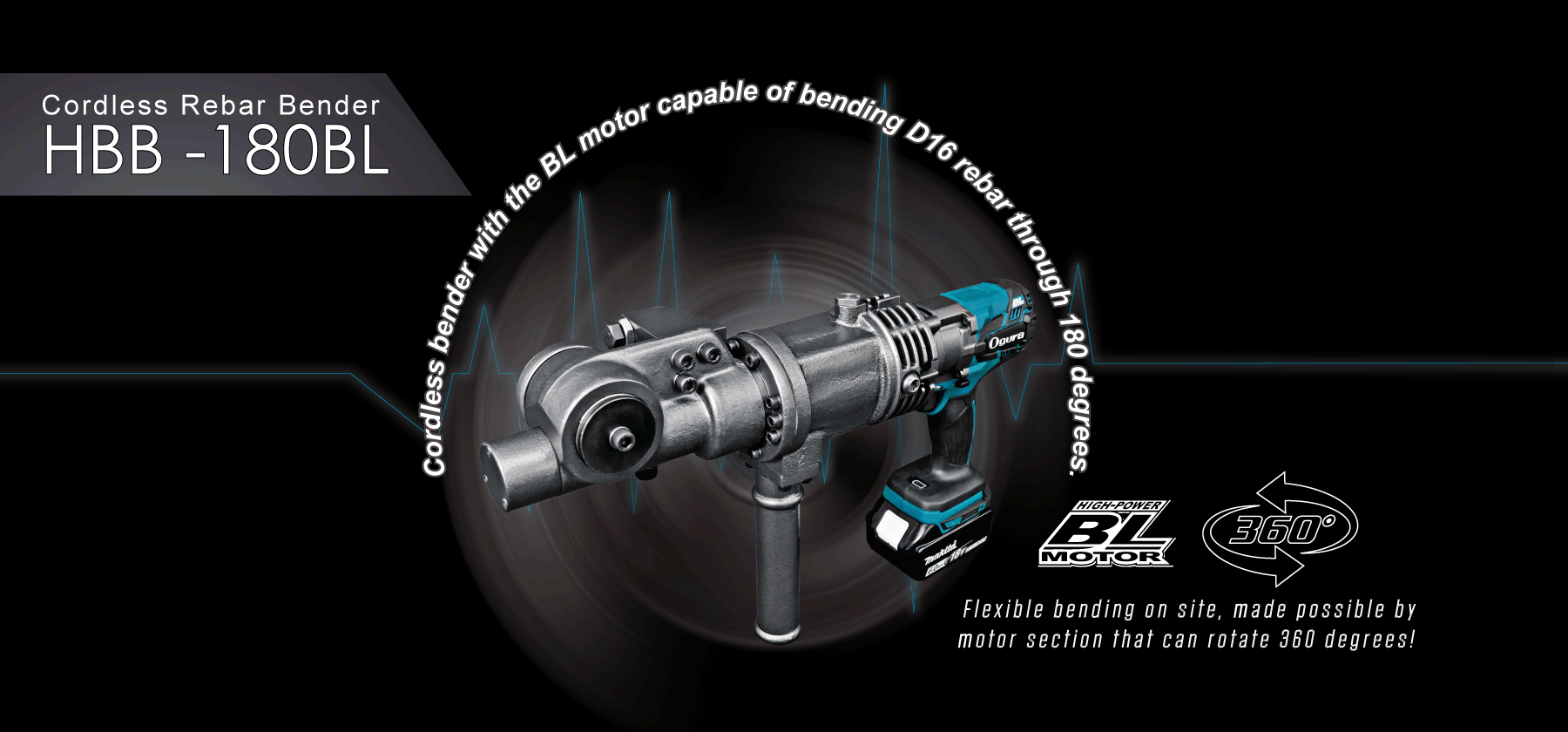

FEATURESHBB-180BL
- • Can bend 180 degrees D16 (SD345: 490N/mm2) rebar in 11 seconds.*1
- • 360 degrees rotating motor for maximum flexibility on site.
- • Equipped with high powered 18V motor.
- • BL motor protected from dirt and moisture.*2
- • Equipped with easy-to-read battery indicator.
- • Able to bend D16 rebar 80 times continuously with a fully charged 6.0 Ah battery. *3
- • The spool valve mechanism enables stepless bending to any angle up to 180 degrees.
- *1 Bending speed when using a new battery when fully charged battery. The speed varies slightly depending on bending conditions.
- *2 This tool is designed to be less susceptible to dirt and moisture but we do not guarantee that it will not break down due to dirt and moisture.
- *3 Based on our test value. The number of cuts varies depending on cutting conditions.
- Longer Life Brushless Motor
- There are no carbon brushes inside the Brushless Motor so it runs contact-free and without resistance, eliminating wear on the tool's armature for longer tool life.
- Contact-free operation also means it runs cooler and more efficiently.
- Unlike conventional motors, the Brushless Motor does not require the regular replacement of carbon brushes so the tool spends more time working.
SPECIFICATIONSHBB-180BL
| Motor | Brushless DC motor |
| Weight | 12.7 kg / 28.0 lbs (including battery) |
| Dimensions | 486 (L) x 134 (W) x 292 (H) mm 19.1" (L) x 5.27" (W) x 11.5" (H) |
| Bending Force | D16 (5/8"): SD345 / 490 N/mm2 (50 kgf/mm2) |
| Bending Speed | approx. 11.0 seconds |
| Standard Accessories | Hex wrenches, Double-end spanner, Carrying case |
MORE INFOHBB-180BL

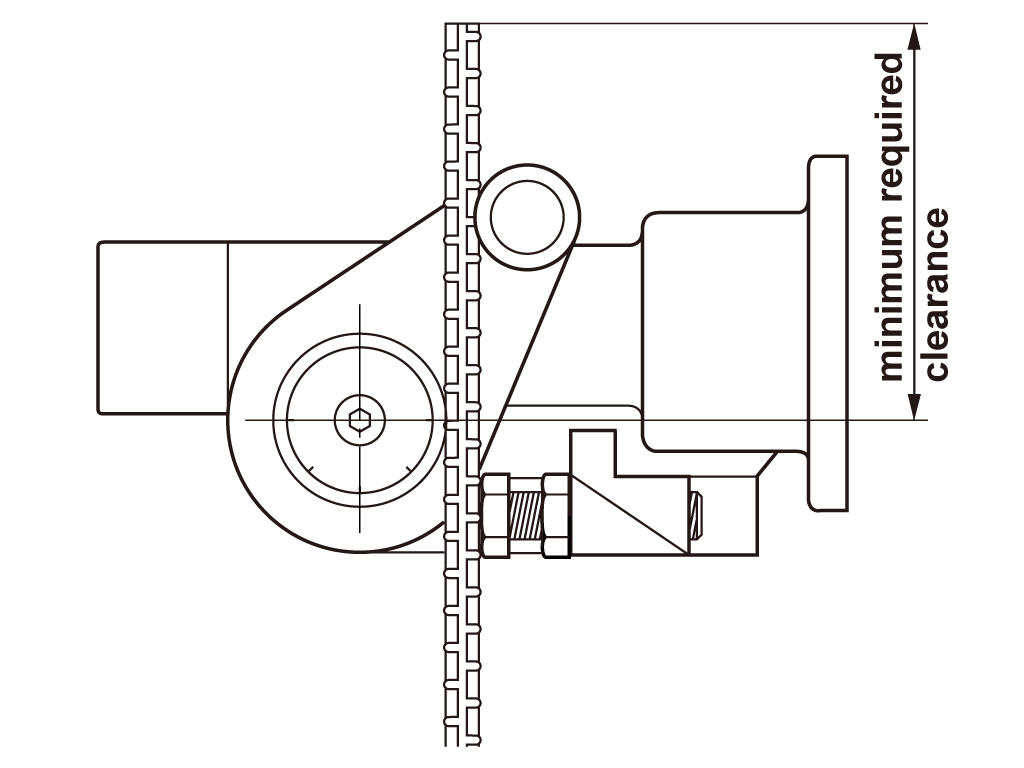

■Minimum Required Clearance
■Table of Minimum Required Clearance
| Rebar Diameter | Collar | Roller | 90 degrees bend | 135 degrees bend | 180 degrees bend |
|---|---|---|---|---|---|
| D10 | without collar (Φ37) | Φ24 | 105mm | 123mm | 141mm |
| Φ45 | Φ24 | 108mm | 130mm | 152mm | |
| D13 | Φ45 | Φ24 | 110mm | 133mm | 156mm |
| D16 | Φ45 | Φ24 | 113mm | 137mm | 161mm |
