FEATURESHSC-41MX

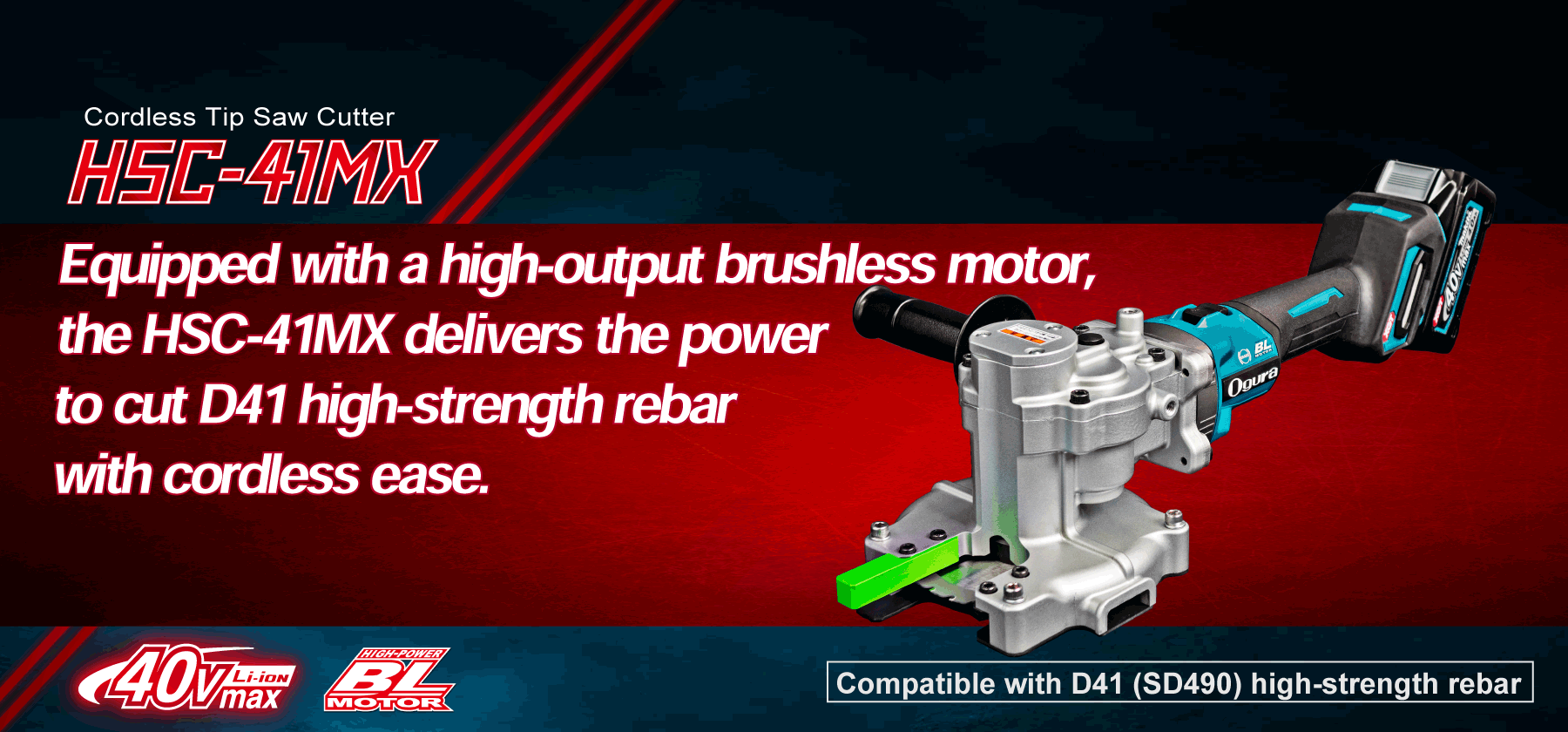

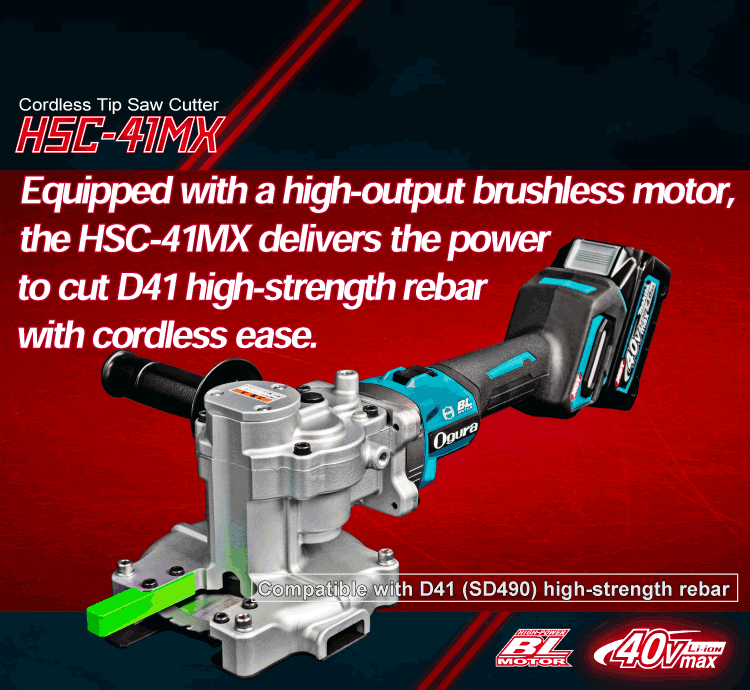

- • At only 6.3 kg, the HSC-41MX is an extremely lightweight cutter for D41 high-strength rebar (SD390 / SD490).
- • Capable of cutting rebar arranged at 100 mm intervals.
- • Uses Ogura’s original cost-effective carbide-tipped saw blade with a robust irregular triple-pin mounting system, that delivers stable cutting performance, and an incorrect-installation prevention function.
- • Equipped with a 40V max motor that delivers more power than AC 100V machines despite being cordless.
- • The optimized power supply system and large controller provide heat protection, significantly extending continuous operating time before shutdown.
- • Achieves more than 30 cuts*1 of D41 high-strength rebar (SD490) per 4.0Ah battery
- • 40V max batteries are IP56-rated for high dust and water resistance, designed for use in various work environments. *2
- • The base plate cover is bolted from above for easy blade replacement, and its surface treatment improves wear resistance during cutting.
- • The handle can be mounted in three directions - top, left, or right - to suit a wide range of working conditions.
- *1 Based on our test values. The number of cuts varies depending on the cutting situation.
- *2 Products with an IP rating are designed to reduce the effects of dust and water, but the rating does not guarantee that the product will not fail.
OPTIONRight Angle Cutting Table for Rebar Joint
[Patent Pending]
OTHER INFORMATIONHSC-41MX
| Diameter of Rebar (490N/mm2) | Number of Cuts per Fully Charged 4.0Ah Battery | Estimated Blade Life |
| D41 | approx. 35 times | approx. 280 times |
| D35 / #11 | approx. 60 times | approx. 305 times |
| D25 / #8 | approx. 115 times | approx. 800 times |
| D20 / #6 | approx. 200 times | approx. 1,100 times |
SPECIFICATIONSHSC-41MX
| Motor | Brushless DC motor |
| Weight | 6.3 kg / 13.89 lbs (incl. 4.0Ah battery) |
| Dimensions | 562 (L) x 163 (W) x 166 (H) mm / 22.12 × 6.41 × 6.53 in(excl. handle) |
| Max. Cutting Capacity | 620N/mm2 (Grade 60): D41 rebar |
| Sound Pressure Level | 78.0 dB (A) with no load |
| Sound Power Level | 89.0 dB (A) with no load |
| Standard Accessories | Hex Wrenches (M5), Dust Bag, Carrying Case, Tipped Saw Blade |
| Option | Right Angle Cutting Table |
