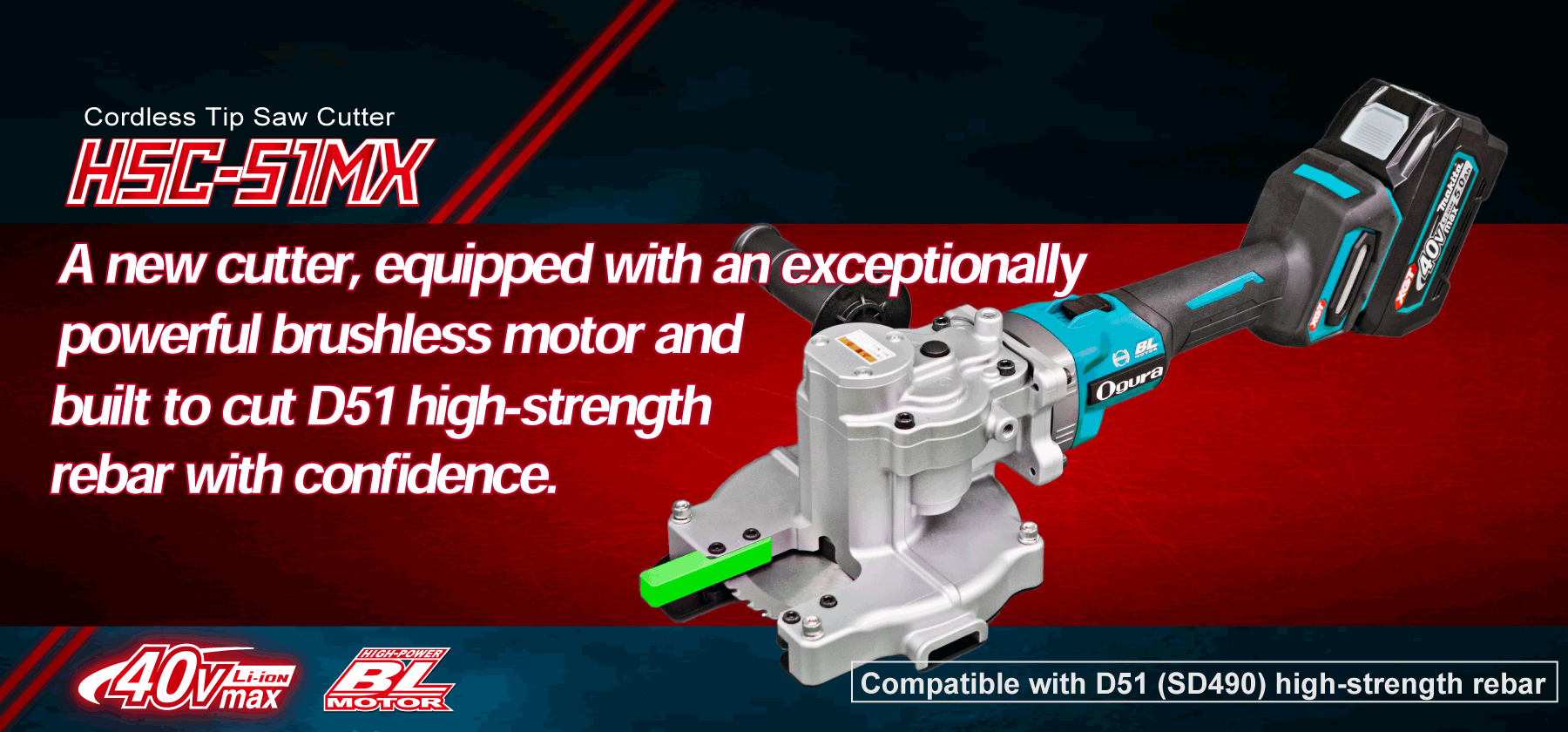

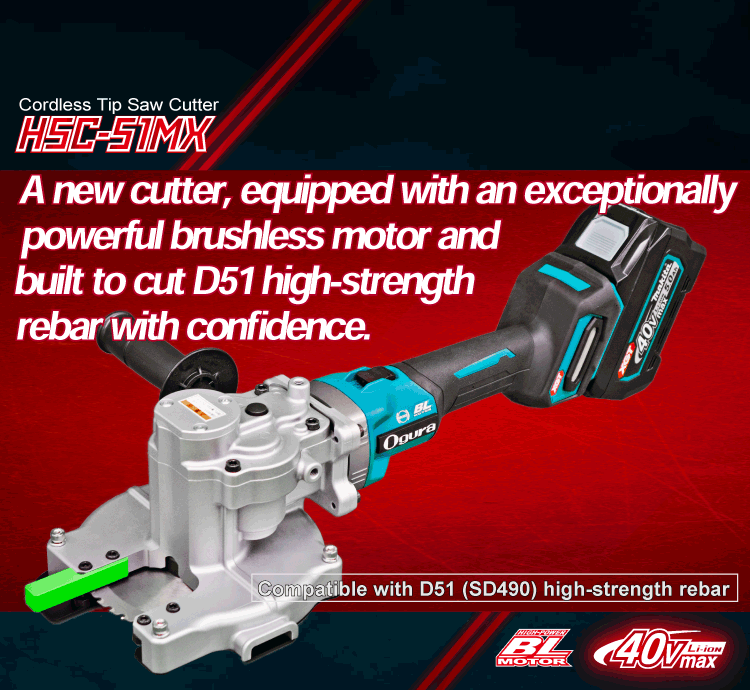

FEATURESHSC-51MX
- • Weighting only 7.2 kg, this is the lightest cutter in the industry for D51 high-strength rebar (SD390 / SD490).
- • The original tipped saw blade offers excellent cost performance and uses a robust modified triple-pin mounting system. Despite its simple flange-less design, it delivers stable cutting performance and secure installation, with a misinstallation prevention feature.
- • An optimized power supply system and thermal protection with a large controller significantly extend continuous working time before automatic stop.
- • Equipped with a 40V max motor that delivers more power than AC 100V machines despite being cordless.
- • Delivers over 20 cuts of D51 high-strength rebar (SD490/Grade60) per 5.0Ah battery. *1
- • Designed exclusively for high-capacity, high-output F-type batteries. *2
- • 40V max batteries are IP56-rated for high dust and water resistance, designed for use in various work environments. *3
- • The base plate cover is bolted from above for easy blade replacement, and its surface treatment improves wear resistance during cutting.
- • The handle can be mounted in three directions - top, left, or right - to suit a wide range of working conditions.
- *1 Based on our test values. The number of cuts varies depending on the cutting situation.
- *2 Use only batteries marked with âFâ for the HSC-51MX.
- *3 Products with an IP rating are designed to reduce the effects of dust and water, but the rating does not guarantee that the product will not fail.
OPTIONRight Angle Cutting Table for Rebar Joint
[Patent Pending]
OTHER INFORMATIONHSC-51MX
| Diameter of Rebar (490N/mm2) | Number of Cuts per Fully Charged 5.0Ah Battery | Estimated Blade Life |
| D51 | approx. 20 times | approx. 450 times |
| D41 | approx. 40 times | approx. 480 times |
| D25 / #8 | approx. 105 times | approx. 1490 times |
SPECIFICATIONSHSC-51MX
| Motor | Brushless DC motor |
| Weight | 7.2 kg / 15.87 lbs (incl. 5.0Ah battery) |
| Dimensions | 599 (L) x 190 (W) x 185 (H) mm / 23.58 × 7.48 × 7.28 in(excl. handle) |
| Max. Cutting Capacity | 620N/mm2 (Grade 60): D51 rebar |
| Sound Pressure Level | 78.0 dB (A) with no load |
| Sound Power Level | 89.0 dB (A) with no load |
| Standard Accessories | Hex Wrenches (M5, M8), Dust Bag, Carrying Case, Tipped Saw Blade |
| Option | Right Angle Cutting Table |
