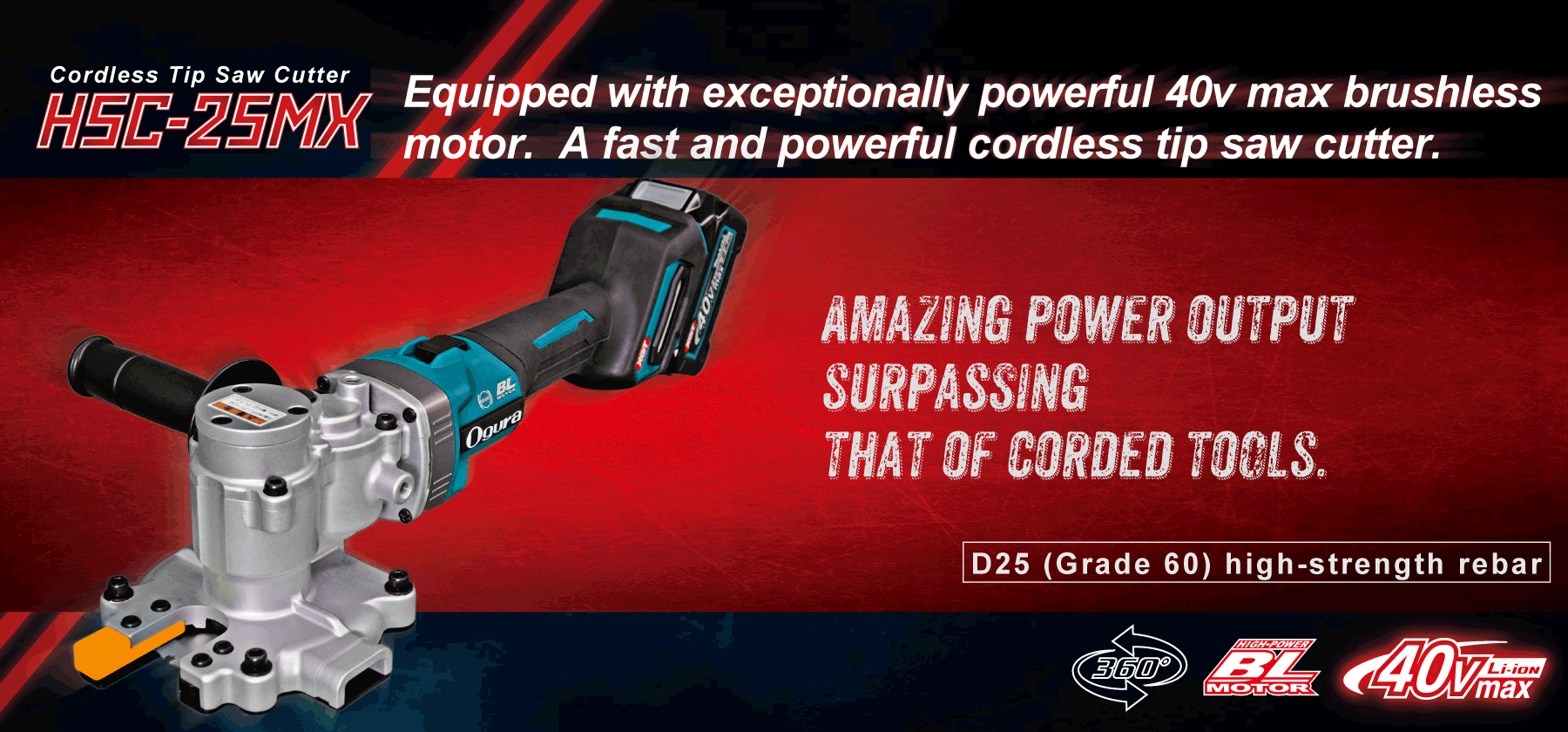

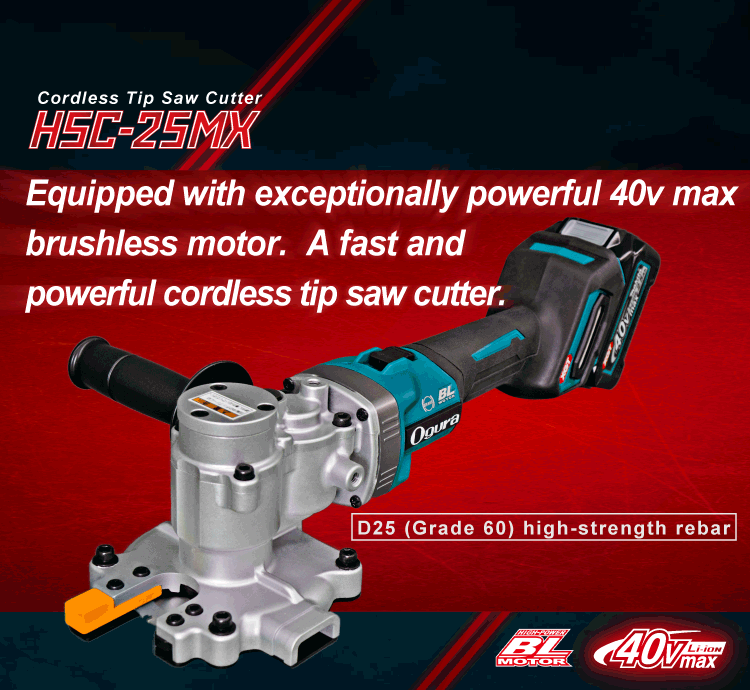

FEATURESHSC-25MX
- • Lightweight, high-speed, high-power cutter with a weight of only 4.2 kg, compatible with D25 high-strength rebar (grade60/SD490).
- • High efficiency significantly increases the life of each chip saw blade by more than 20% compared to the conventional model (HSC-25BLN).
- • Cost-effective original chip saw with a strong irregular triple pin system. Despite its simple design without flanges, it achieves stable cutting performance and reliable wearability (with a function to prevent mis mounting).
- • Optimal power supply system + heat generation protection by large controller greatly increases the continuous working time before stopping.
- • Equipped with a 40V max motor that achieves a high power of more than 100V AC even though it is a cordless type.
- • Over 65 times D25 rebar cuts per 2.5 Ah*1 battery realized.
- • After cutting all screws, the nut can be inserted without deburring.
- • 40V max battery is IP56 dust and water resistant for use in all environments*2 Specification.
- • The bottom plate cover is bolted from above, making it easy to change blades, and the surface treatment enhances wear resistance during cutting.
- • Handle can be installed either on the left, right or upper side.
- *1 Based on our test values. The number of cuts varies depending on the cutting situation.
- *2 Products labeled with IP are designed to be less susceptible to dust and water, but we do not guarantee that they will not malfunction.
OPTIONRight Angle Cutting Table for Rebar Joint
[Patent Pending]
OTHER INFORMATIONHSC-25MX
The First in the Industry equipped with Automatic Speed Control!
Automatically changes the cutting speed according to load condition for optimum operation.
| Diameter of Rebar (490N/mm2) | Number of Cuts per Fully Charged 5.0Ah Battery | Estimated Blade Life |
| D25 / #8 | approx. 65 times | approx. 800 times |
| D20 / #6 | approx. 115 times | approx. 1300 times |
| D16 / #5 | approx. 185 times | approx. 2600 times |
| D13 / #4 | approx. 255 times | approx. 3700 times |
| D10 / #3 | approx. 345 times | approx. 4100 times |
SPECIFICATIONSHSC-25MX
| Motor | Brushless DC motor |
| Weight | 4.2 kg / 9.26 lbs (incl. 2.5Ah battery) |
| Dimensions | 504 (L) x 137 (W) x 148 (H) mm / 19.84 × 5.4 × 5.82 in(excl. handle) |
| Max. Cutting Capacity | 620N/mm2 (Grade 60): D25 / #8 rebar |
| External Diameter of Blade | 110 mm / 4.33 in |
| Sound Pressure Level | 78.0 dB (A) with no load |
| Sound Power Level | 89.0 dB (A) with no load |
| Standard Accessories | Hex Wrench (M5), Dust Bag, Carrying Case, Tipped Saw |
