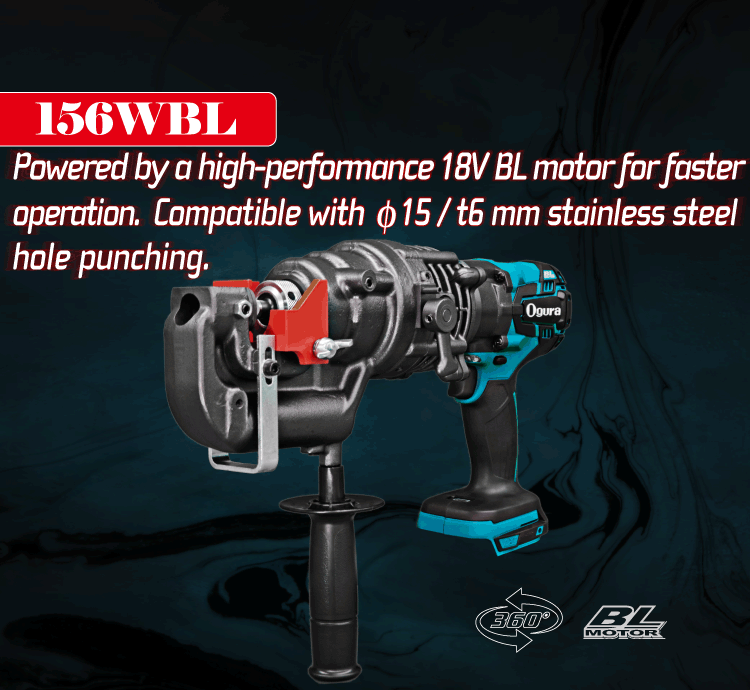

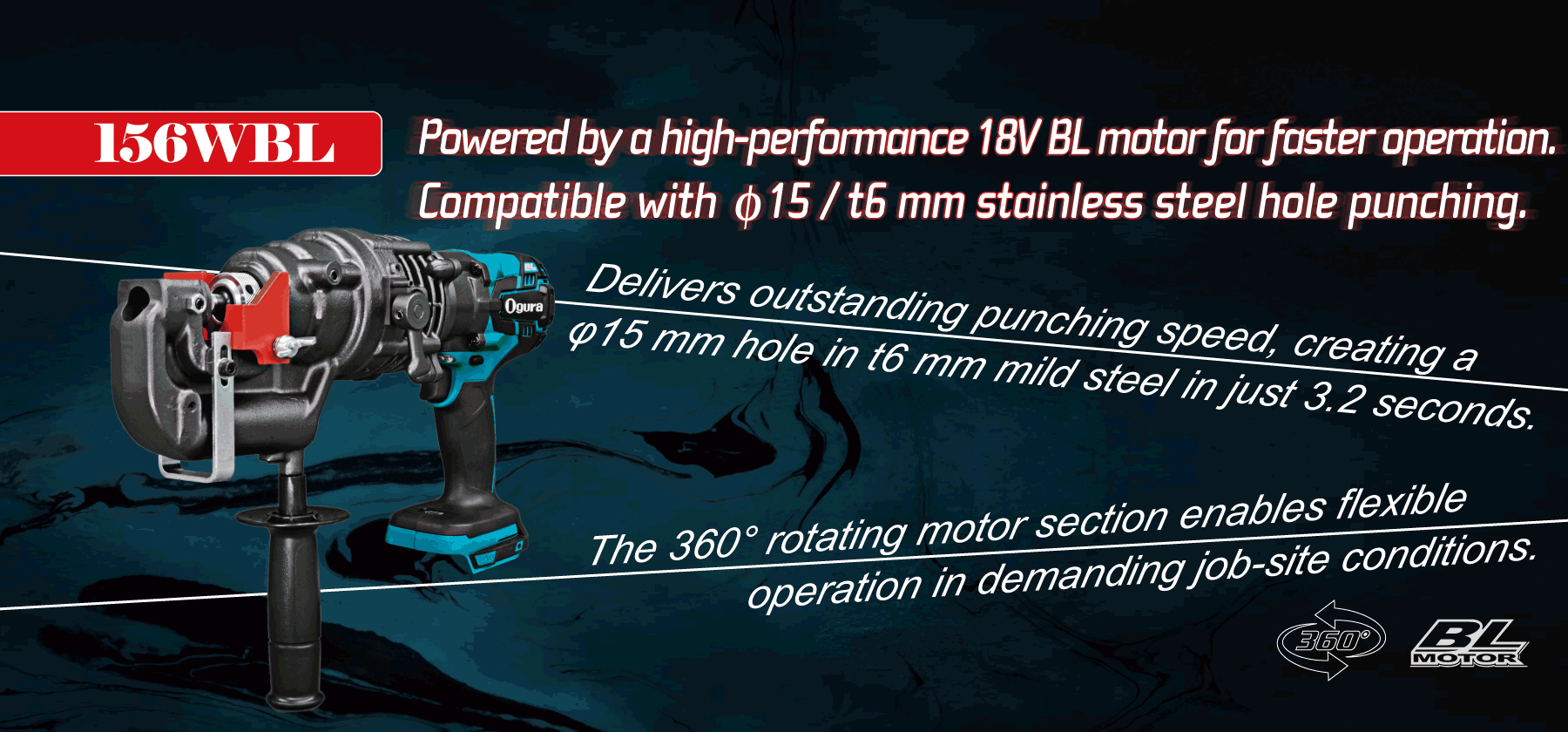

156WBL Electro Hydraulic Cordless Puncher

FEATURES156WBL

- A lightweight, compact, double-acting cordless puncher capable of punching holes in stainless steel up to 15 mm diameter and 6 mm thickness.
- Offers outstanding punching speed, punching 15 mm diameter holes in 6 mm thick mild steel in 3.2 seconds.^*1
- Adopts a double-acting hydraulic system in which both punching and punch return are hydraulically driven. This eliminates material hang-up during punch return and enables smooth, stress-free on-site operation.
- The motor section rotates 360°, allowing flexible operation at the job site.
- The product structure has been redesigned from the ground up with the user in mind, and the punch and die mounting section has been newly designed and reinforced.
- Can process mild steel, stainless steel, aluminum, and copper^*2 using the same punch and die.
*1 Based on Ogura internal test results. Punching speed may vary depending on conditions.
*2 For thin plates, burrs or deformation may occur. If accuracy is required, it is necessary to select the optimum punch and die according to the material and plate thickness.

Motor	DC brushless motor
Weight (excl. battery)	7.6 kg / 16.76 lbs
Weight (incl. 1860B battery)	8.2 kg / 18.08 lbs
Dimensions	365 (L) x 116 (W) x 293 (H) mm 14.37 x 4.57 x 11.54 in
Max. Throat Depth	25 mm / 0.98 in
Hole Shape	Round / Oblong
Max. Hole Size	Mild steel (65,000 psi): Φ15/t6 mm
Max. Hole Size	Stainless steel (89,000 psi): Φ15/t6 mm
Number of Holes per 6.0Ah Battery	Mild steel (65,000 psi): Φ15/t6 mm: 275 holes^*
Number of Holes per 6.0Ah Battery	Stainless steel (89,000 psi): Φ15/t6 mm: 210 holes^*
Standard Accessories	punch Φ12 mm, die SB12, tommy bar, spanner (8 × 10 mm), hex wrenches, hydraulic oil, carrying case, grip, strap, battery & charger
Option	work stand
^{*Based on Ogura internal test results. The number of holes may vary depending on punching conditions and battery condition.}

■Round Punch & Die [unit: mm]

Round Punch	Round Die	Mild Steel	Aluminium Copper	Stainless Steel	Channel Flange
4	4A	t2	t2 - t3	-	-
5	5A	t2〜t3	t2〜t4	-	-
5.5	5.5A	t2〜t3	t2〜t4	-	-
6	6A	t2〜t4	t2〜t5	-	-
6.5	SB6.5	t2〜t6	t2〜t6	t3〜t4	-
8	SB8	t2〜t6	t2〜t6	t3〜t4	-
8.5	SB8.5	t2〜t6	t2〜t6	t3〜t4	-
10	^※SB10	t2〜t6	t2〜t6	t3〜t4	t7.5
11	^※SB11	t2〜t6	t2〜t6	t3〜t6	t7.5
12	^※SB12	t2〜t6	t2〜t6	t3〜t6	t7.5
13	^※SB13	t2〜t6	t2〜t6	t3〜t6	t7.5
14	^※SB14	t2〜t6	t2〜t6	t3〜t6	t7.5
15	^※SB15	t2〜t6	t2〜t6	t3〜t6	t7.5

※ Use die C for Channel.
■Oblong Punch & Die [unit: mm]

Oblong Punch	Oblong Die	Mild Steel	Aluminium Copper	Stainless Steel
6.5×10	6.5×10B	t2〜t6	t3〜t6	t3〜t4
6.5×13	6.5×13B	t2〜t6	t3〜t6	t3〜t4
8.5×13	8.5×13B	t2〜t6	t3〜t6	t3〜t4
9×13.5	9×13.5B	t2〜t6	t3〜t6	t3〜t4
10×15	10×15B	t2〜t6	t3〜t6	t3〜t6
11×16.5	11×16.5B	t2〜t6	t3〜t6	t3〜t6
12×17	SB12×17	t2〜t6	t3〜t6	t3〜t6
13×17	SB13×17	t2〜t6	t3〜t6	t3〜t6
